Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TVX2A470MAD1LVCAP ALUM 47UF 20% 100V AXIAL |
2,587 | - |
|
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | TVX | Obsolete | 47 µF | ±20% | 100 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 190 mA @ 120 Hz | 380 mA @ 10 kHz | - | - | 0.315 Dia x 0.787 L (8.00mm x 20.00mm) | - | - | Through Hole |
|

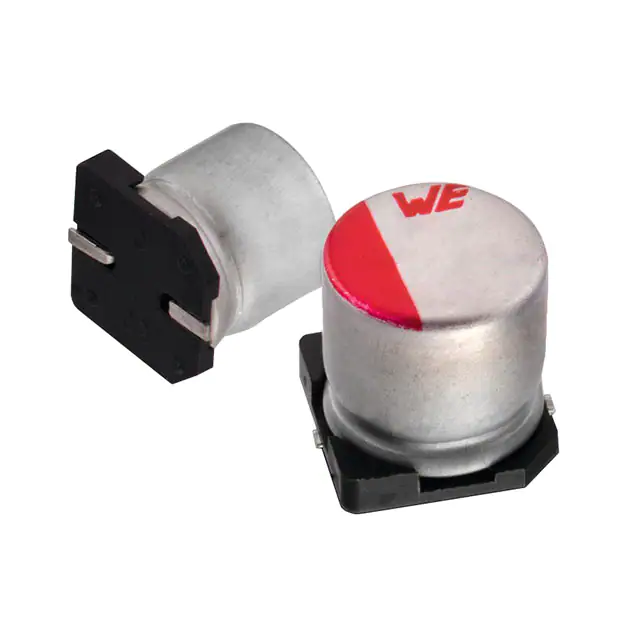

865230640001CAP ALUM 0.1UF 20% 50V SMD |
2,297 | - |
|
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | WCAP-AS5H | Obsolete | 0.1 µF | ±20% | 50 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1 mA @ 120 Hz | 1.5 mA @ 10 kHz | - | - | 0.157 Dia (4.00mm) | 0.217 (5.50mm) | 0.169 L x 0.169 W (4.30mm x 4.30mm) | Surface Mount |
|
|
865230640002CAP ALUM 0.22UF 20% 50V SMD |
3,724 | - |
|
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | WCAP-AS5H | Obsolete | 0.22 µF | ±20% | 50 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.6 mA @ 120 Hz | 3.9 mA @ 10 kHz | - | - | 0.157 Dia (4.00mm) | 0.217 (5.50mm) | 0.169 L x 0.169 W (4.30mm x 4.30mm) | Surface Mount |
|

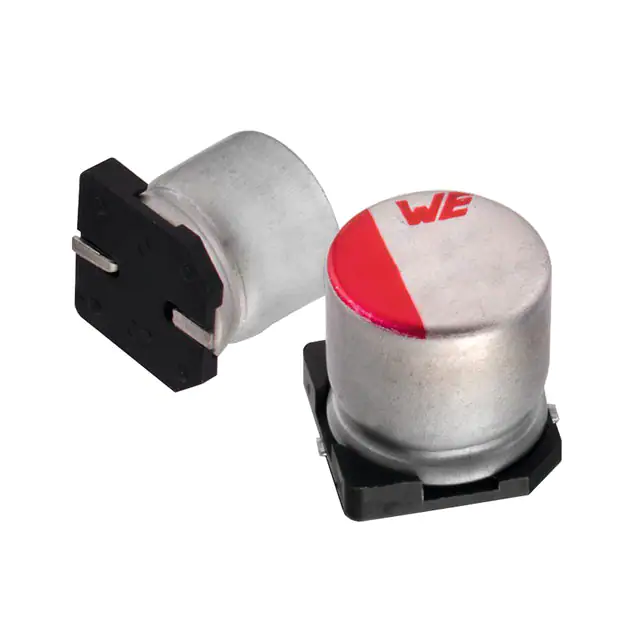

865250640002CAP ALUM 0.22UF 20% 50V SMD |
3,729 | - |
|
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | WCAP-ASNP | Obsolete | 0.22 µF | ±20% | 50 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Bi-Polar | - | General Purpose | 2 mA @ 120 Hz | 3 mA @ 100 kHz | - | - | 0.157 Dia (4.00mm) | 0.217 (5.50mm) | 0.169 L x 0.169 W (4.30mm x 4.30mm) | Surface Mount |
|
|
865250640003CAP ALUM 0.33UF 20% 50V SMD |
3,473 | - |
|
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | WCAP-ASNP | Obsolete | 0.33 µF | ±20% | 50 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Bi-Polar | - | General Purpose | 2.8 mA @ 120 Hz | 4.2 mA @ 100 kHz | - | - | 0.157 Dia (4.00mm) | 0.217 (5.50mm) | 0.169 L x 0.169 W (4.30mm x 4.30mm) | Surface Mount |
|
860010772003CAP ALUM 0.33UF 20% 63V RADIAL |
2,176 | - |
|
Datasheet |
Cut Tape (CT),Tape & Box (TB) | WCAP-ATG8 | Obsolete | 0.33 µF | ±20% | 63 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 6 mA @ 120 Hz | 10.2 mA @ 100 kHz | - | 0.079 (2.00mm) | 0.197 Dia (5.00mm) | 0.492 (12.50mm) | - | Through Hole |
|

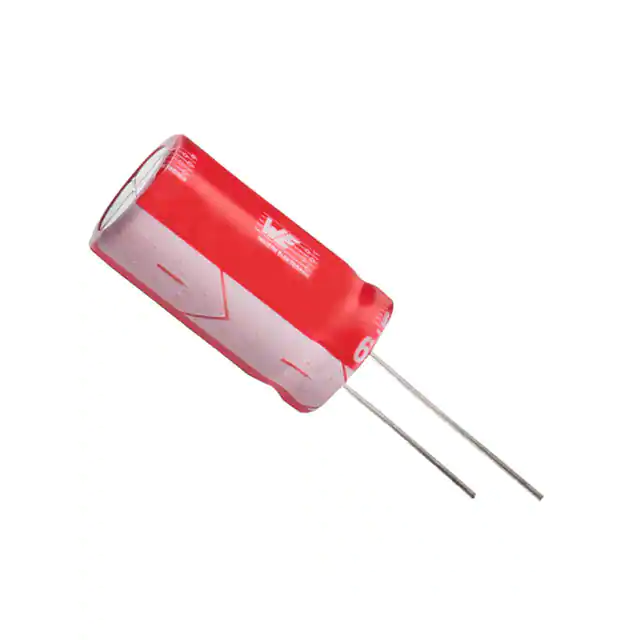

860020672002CAP ALUM 0.22UF 20% 50V RADIAL |
2,462 | - |
|
Datasheet |
Cut Tape (CT),Tape & Box (TB) | WCAP-ATG5 | Obsolete | 0.22 µF | ±20% | 50 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.9 mA @ 120 Hz | 4.93 mA @ 100 kHz | - | 0.079 (2.00mm) | 0.197 Dia (5.00mm) | 0.492 (12.50mm) | - | Through Hole |
|
|
860020772002CAP ALUM 0.22UF 20% 63V RADIAL |
3,781 | - |
|
Datasheet |
Cut Tape (CT),Tape & Box (TB) | WCAP-ATG5 | Obsolete | 0.22 µF | ±20% | 63 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.9 mA @ 120 Hz | 4.93 mA @ 100 kHz | - | 0.079 (2.00mm) | 0.197 Dia (5.00mm) | 0.492 (12.50mm) | - | Through Hole |
|
|
860020772003CAP ALUM 0.33UF 20% 63V RADIAL |
3,521 | - |
|
Datasheet |
Cut Tape (CT),Tape & Box (TB) | WCAP-ATG5 | Obsolete | 0.33 µF | ±20% | 63 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 4.5 mA @ 120 Hz | 7.65 mA @ 100 kHz | - | 0.079 (2.00mm) | 0.197 Dia (5.00mm) | 0.492 (12.50mm) | - | Through Hole |
|
381LQ152M200A042CAP ALUM 1500UF 20% 200V SNAP |
2,261 | - |
|
Datasheet |
Bulk | 381LQ | Active | 1500 µF | ±20% | 200 V | 133mOhm @ 120Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | - | 2.8 A @ 100 kHz | - | 0.394 (10.00mm) | 1.378 Dia (35.00mm) | 1.654 (42.00mm) | - | Through Hole |
|
ERHA501LGC152MCB5MCAP ALUM 1500UF 20% 500V SCREW |
2,742 | - |
|
Datasheet |
Tray | RHA | Obsolete | 1500 µF | ±20% | 500 V | - | 5000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 7.2 A @ 120 Hz | 10.08 A @ 3 kHz | - | 0.882 (22.40mm) | 1.969 Dia (50.00mm) | 4.528 (115.00mm) | - | Chassis Mount |
|
|
ERHA501LGC182MCD0MCAP ALUM 1800UF 20% 500V SCREW |
2,928 | - |
|
Datasheet |
Tray | RHA | Obsolete | 1800 µF | ±20% | 500 V | - | 5000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 8.3 A @ 120 Hz | 11.62 A @ 3 kHz | - | 0.882 (22.40mm) | 1.969 Dia (50.00mm) | 5.118 (130.00mm) | - | Chassis Mount |
|
|
ERHA501LGC222MCF0MCAP ALUM 2200UF 20% 500V SCREW |
2,414 | - |
|
Datasheet |
Tray | RHA | Obsolete | 2200 µF | ±20% | 500 V | - | 5000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 9.8 A @ 120 Hz | 13.72 A @ 3 kHz | - | 0.882 (22.40mm) | 1.969 Dia (50.00mm) | 5.906 (150.00mm) | - | Chassis Mount |
|
ERHA501LGC272MDC0MCAP ALUM 2700UF 20% 500V SCREW |
3,287 | - |
|
Datasheet |
Tray | RHA | Obsolete | 2700 µF | ±20% | 500 V | - | 5000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 11.2 A @ 120 Hz | 15.68 A @ 3 kHz | - | 1.102 (28.00mm) | 2.500 Dia (63.50mm) | 4.724 (120.00mm) | - | Chassis Mount |
|
|
ERHA501LGC332MDE0MCAP ALUM 3300UF 20% 500V SCREW |
3,194 | - |
|
Datasheet |
Tray | RHA | Obsolete | 3300 µF | ±20% | 500 V | - | 5000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 13.3 A @ 120 Hz | 18.62 A @ 3 kHz | - | 1.102 (28.00mm) | 2.500 Dia (63.50mm) | 5.512 (140.00mm) | - | Chassis Mount |
|
|
ERHA501LGC392MDH0MCAP ALUM 3900UF 20% 500V SCREW |
2,107 | - |
|
Datasheet |
Tray | RHA | Obsolete | 3900 µF | ±20% | 500 V | - | 5000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 15.7 A @ 120 Hz | 21.98 A @ 3 kHz | - | 1.102 (28.00mm) | 2.500 Dia (63.50mm) | 6.693 (170.00mm) | - | Chassis Mount |
|
ERHA501LGC472MEF0MCAP ALUM 4700UF 20% 500V SCREW |
2,952 | - |
|
Datasheet |
Tray | RHA | Obsolete | 4700 µF | ±20% | 500 V | - | 5000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 18.1 A @ 120 Hz | 25.34 A @ 3 kHz | - | 1.240 (31.50mm) | 3.000 Dia (76.20mm) | 5.906 (150.00mm) | - | Chassis Mount |
|
|
ERHA501LGC562MEH0MCAP ALUM 5600UF 20% 500V SCREW |
2,440 | - |
|
Datasheet |
Tray | RHA | Obsolete | 5600 µF | ±20% | 500 V | - | 5000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 20.8 A @ 120 Hz | 29.12 A @ 3 kHz | - | 1.240 (31.50mm) | 3.000 Dia (76.20mm) | 6.693 (170.00mm) | - | Chassis Mount |
|
ERHA501LGC562MFD0MCAP ALUM 5600UF 20% 500V SCREW |
3,343 | - |
|
Datasheet |
Tray | RHA | Obsolete | 5600 µF | ±20% | 500 V | - | 5000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 17.1 A @ 120 Hz | 23.94 A @ 3 kHz | - | 1.240 (31.50mm) | 3.504 Dia (89.00mm) | 5.118 (130.00mm) | - | Chassis Mount |
|
|
ERHA501LGC682MFF0MCAP ALUM 6800UF 20% 500V SCREW |
3,394 | - |
|
Datasheet |
Tray | RHA | Obsolete | 6800 µF | ±20% | 500 V | - | 5000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 20 A @ 120 Hz | 28 A @ 3 kHz | - | 1.240 (31.50mm) | 3.504 Dia (89.00mm) | 5.906 (150.00mm) | - | Chassis Mount |
