Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Type | Material-Core | Inductance | Tolerance | CurrentRating(Amps) | Current-Saturation(Isat) | Shielding | DCResistance(DCR) | Q@Freq | Frequency-SelfResonant | Ratings | OperatingTemperature | InductanceFrequency-Test | Features | MountingType | Size/Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

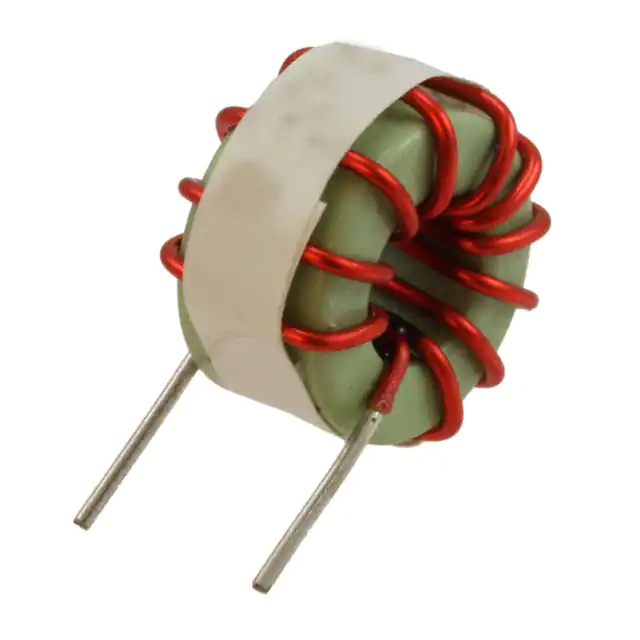

CTX500-2-52-RFIXED IND 500UH 3.1A 183 MOHM TH |
2,781 | - |
|
Datasheet |
Radial, Vertical (Open) | Bulk | CTX | Active | Toroidal | Iron Powder | 500 µH | ±20% | 3.1 A | 3.3A | Unshielded | 183mOhm Max | - | - | - | -40°C ~ 75°C | 100 kHz | - | Through Hole | - |
|
CL1108-5-50TR-RFIXED IND 50NH 80A 0.28 MOHM SMD |
2,598 | - |
|
Datasheet |
Nonstandard | Tape & Reel (TR) | CL | Active | - | Ferrite | 50 nH | ±20% | 80 A | - | Unshielded | 0.28mOhm | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - |
|
|
CLB1108-5-50TR-RFIXED IND 200NH 0.28 MOHM SMD |
3,749 | - |
|
Datasheet |
Nonstandard | Tape & Reel (TR) | CLB | Active | - | Ferrite | 200 nH | - | - | 25A | Unshielded | 0.28mOhm | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - |
|
|
CTX20-10-52-RFIXED IND 20UH 16A 7 MOHM TH |
2,140 | - |
|
Datasheet |
Radial, Vertical (Open) | Bulk | CTX | Active | Toroidal | Iron Powder | 20 µH | ±20% | 16 A | 16A | Unshielded | 7mOhm Max | - | - | - | -40°C ~ 75°C | 100 kHz | - | Through Hole | - |
|
|
CLH1110R1-6-R050-RMULTIPHASE COUPLED INDUCTOR |
3,569 | - |
|
12-SMD | Tape & Reel (TR) | CLH | Active | - | Ferrite | 300 nH | - | - | 25A | Unshielded | 0.23mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | 6 Phase | Surface Mount | 12-SMD | |
|
|

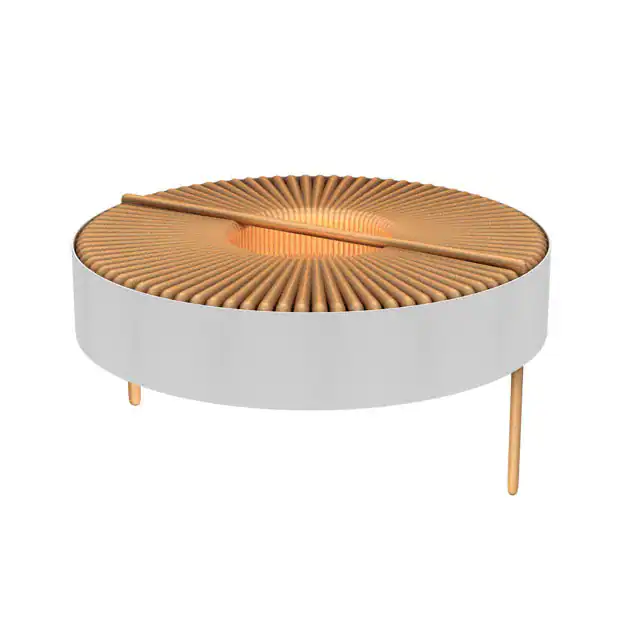

CTX100-5-52LP-RFIXED IND 100UH 8.2A 26.7MOHM TH |
3,068 | - |
|
Datasheet |
Radial, Horizontal (Open) | Bulk | CTX | Active | Toroidal | Iron Powder | 100 µH | ±20% | 8.2 A | 7.5A | Unshielded | 26.7mOhm Max | - | - | - | -40°C ~ 75°C | 100 kHz | - | Through Hole | - |
|
|
CTX20-10-52LP-RFIXED IND 20UH 16A 7 MOHM TH |
3,670 | - |
|
Datasheet |
Radial, Horizontal (Open) | Bulk | CTX | Active | Toroidal | Iron Powder | 20 µH | ±20% | 16 A | 16A | Unshielded | 7mOhm Max | - | - | - | -40°C ~ 75°C | 100 kHz | - | Through Hole | - |
|
CTX150-5-52M-RFIXED IND 150UH 7.7A 40.1MOHM TH |
3,592 | - |
|
Datasheet |
Radial, Vertical, 4 Leads (Open) | Bulk | CTX | Active | Toroidal | Iron Powder | 150 µH | ±20% | 7.7 A | 7.5A | Unshielded | 40.1mOhm Max | - | - | - | -40°C ~ 75°C | 100 kHz | - | Through Hole | - |
|
|
CTX50-10-52-RFIXED IND 50UH 13.9A 12.4MOHM TH |
2,264 | - |
|
Datasheet |
Radial, Vertical (Open) | Bulk | CTX | Active | Toroidal | Iron Powder | 50 µH | ±20% | 13.9 A | 12.7A | Unshielded | 12.4mOhm Max | - | - | - | -40°C ~ 75°C | 100 kHz | - | Through Hole | - |
|
|

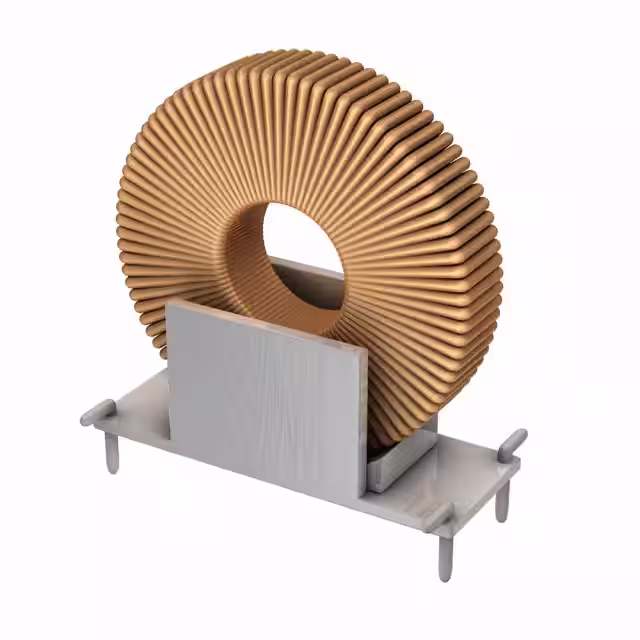

CTX750-2-52M-RFIXED IND 750UH 3.4A 208 MOHM TH |
3,394 | - |
|
Datasheet |
Radial, Vertical, 4 Leads (Open) | Bulk | CTX | Active | Toroidal | Iron Powder | 750 µH | ±20% | 3.4 A | 3.4A | Unshielded | 208mOhm Max | - | - | - | -40°C ~ 75°C | 100 kHz | - | Through Hole | - |
|
|
CTX750-2-52LP-RFIXED IND 750UH 3.4A 208 MOHM TH |
2,164 | - |
|
Datasheet |
Radial, Horizontal (Open) | Bulk | CTX | Active | Toroidal | Iron Powder | 750 µH | ±20% | 3.4 A | 3.4A | Unshielded | 208mOhm Max | - | - | - | -40°C ~ 75°C | 100 kHz | - | Through Hole | - |
|
CTX10-16-52LP-RFIXED IND 10UH 27.3A 3.2 MOHM TH |
3,608 | - |
|
Datasheet |
Radial, Horizontal (Open) | Bulk | CTX | Active | Toroidal | Iron Powder | 10 µH | ±20% | 27.3 A | 29.3A | Unshielded | 3.2mOhm Max | - | - | - | -40°C ~ 75°C | 100 kHz | - | Through Hole | - |
|
CTX10-16-52-RFIXED IND 10UH 27.3A 3.2 MOHM TH |
3,831 | - |
|
Datasheet |
Radial, Vertical (Open) | Bulk | CTX | Active | Toroidal | Iron Powder | 10 µH | ±20% | 27.3 A | 29.3A | Unshielded | 3.2mOhm Max | - | - | - | -40°C ~ 75°C | 100 kHz | - | Through Hole | - |
|
|
CTX750-2-52-RFIXED IND 750UH 3.4A 208 MOHM TH |
3,385 | - |
|
Datasheet |
Radial, Vertical (Open) | Bulk | CTX | Active | Toroidal | Iron Powder | 750 µH | ±20% | 3.4 A | 3.4A | Unshielded | 208mOhm Max | - | - | - | -40°C ~ 75°C | 100 kHz | - | Through Hole | - |
|
|
CTX50-10-52LP-RFIXED IND 50UH 13.9A 12.4MOHM TH |
2,895 | - |
|
Datasheet |
Radial, Horizontal (Open) | Bulk | CTX | Active | Toroidal | Iron Powder | 50 µH | ±20% | 13.9 A | 12.7A | Unshielded | 12.4mOhm Max | - | - | - | -40°C ~ 75°C | 100 kHz | - | Through Hole | - |
|
|
CTX100-7-52-RFIXED IND 100UH 12A 16.7 MOHM TH |
2,602 | - |
|
Datasheet |
Radial, Vertical (Open) | Bulk | CTX | Active | Toroidal | Iron Powder | 100 µH | ±20% | 12 A | 9.1A | Unshielded | 16.7mOhm Max | - | - | - | -40°C ~ 75°C | 100 kHz | - | Through Hole | - |
|
|
CTX100-7-52LP-RFIXED IND 100UH 12A 16.7 MOHM TH |
2,489 | - |
|
Datasheet |
Radial, Horizontal (Open) | Bulk | CTX | Active | Toroidal | Iron Powder | 100 µH | ±20% | 12 A | 9.1A | Unshielded | 16.7mOhm Max | - | - | - | -40°C ~ 75°C | 100 kHz | - | Through Hole | - |
|
|
CTX250-5-52LP-RFIXED IND 250UH 9.2A 40 MOHM TH |
3,438 | - |
|
Datasheet |
Radial, Horizontal (Open) | Bulk | CTX | Active | Toroidal | Iron Powder | 250 µH | ±20% | 9.2 A | 8.1A | Unshielded | 40mOhm Max | - | - | - | -40°C ~ 75°C | 100 kHz | - | Through Hole | - |
|
|
CTX150-7-52-RFIXED IND 150UH 12.8A 20.4 MOHM |
2,367 | - |
|
Datasheet |
Radial, Vertical (Open) | Bulk | CTX | Active | Toroidal | Iron Powder | 150 µH | ±20% | 12.8 A | 10.5A | Unshielded | 20.4mOhm Max | - | - | - | -40°C ~ 75°C | 100 kHz | - | Through Hole | - |
|
|
CTX150-7-52LP-RFIXED IND 150UH 12.8A 20.4 MOHM |
2,288 | - |
|
Datasheet |
Radial, Horizontal (Open) | Bulk | CTX | Active | Toroidal | Iron Powder | 150 µH | ±20% | 12.8 A | 10.5A | Unshielded | 20.4mOhm Max | - | - | - | -40°C ~ 75°C | 100 kHz | - | Through Hole | - |
