Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Type | Material-Core | Inductance | Tolerance | CurrentRating(Amps) | Current-Saturation(Isat) | Shielding | DCResistance(DCR) | Q@Freq | Frequency-SelfResonant | Ratings | OperatingTemperature | InductanceFrequency-Test | Features | MountingType | Size/Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IHTH1500MZEB2R2M5AIHTH-1500MZ-5A 2.2 20% EB E2 |
3,233 | - |
|
Datasheet |
Radial, Vertical Cylinder, 4 Leads | Bulk | IHTH-1500MZ-5A | Active | - | Metal Composite | 2.2 µH | ±20% | 81.7 A | 111.4A | Shielded | 0.54mOhm Max | - | 14.7MHz | - | -55°C ~ 155°C | 100 kHz | - | Through Hole | Radial |
|
|
IHTH1500MZEBR47M5AIHTH-1500MZ-5A .47 20% EB E2 |
3,446 | - |
|
Datasheet |
Radial, Vertical Cylinder, 4 Leads | Bulk | IHTH-1500MZ-5A | Active | - | Metal Composite | 470 nH | ±20% | 134.8 A | 156.2A | Shielded | 0.2mOhm Max | - | 54.1MHz | - | -55°C ~ 155°C | 100 kHz | - | Through Hole | Radial |
|

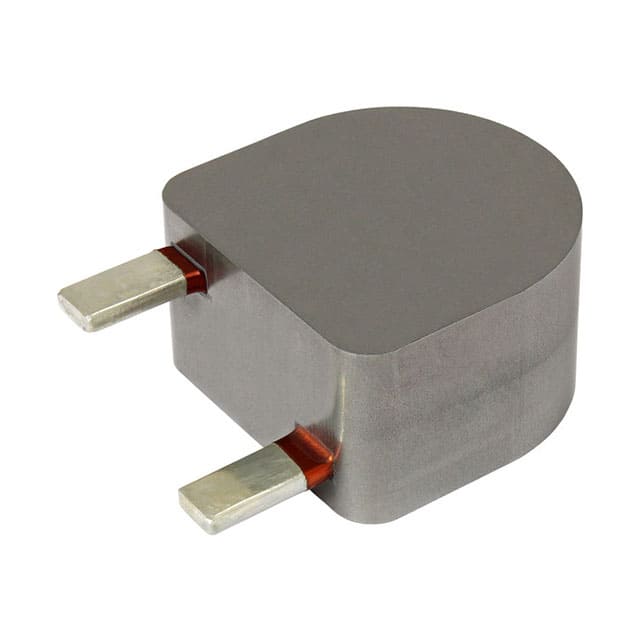

IHXL1500VZEBR82M51FIXED IND 820NH 196A 0.18MOHM TH |
3,866 | - |
|
Datasheet |
Nonstandard | Bulk | IHXL-1500VZ-51 | Active | - | - | 820 nH | ±20% | 196 A | - | Shielded | 0.18mOhm Max | - | - | - | -55°C ~ 155°C | 500 kHz | - | Through Hole | - |
|
|
IHXL1500VZEBR68M51FIXED IND 680NH 235A 0.13MOHM TH |
3,827 | - |
|
Datasheet |
Nonstandard | Bulk | IHXL-1500VZ-51 | Active | - | - | 680 nH | ±20% | 235 A | - | Shielded | 0.13mOhm Max | - | - | - | -55°C ~ 155°C | 500 kHz | - | Through Hole | - |
|
|
IHXL1500VZEB1R5M51FIXED IND 1.5UH 178A 0.26MOHM TH |
3,413 | - |
|
Datasheet |
Nonstandard | Bulk | IHXL-1500VZ-51 | Active | - | - | 1.5 µH | ±20% | 178 A | - | Shielded | 0.26mOhm Max | - | - | - | -55°C ~ 155°C | 500 kHz | - | Through Hole | - |
|
IHXL1500VZEB1R5M5AFIXED IND 1.5UH 178A 0.26MOHM TH |
2,633 | - |
|
Datasheet |
Nonstandard | Bulk | IHXL-1500VZ-5A | Active | - | - | 1.5 µH | ±20% | 178 A | - | Shielded | 0.26mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 500 kHz | - | Through Hole | - |
|
|
IHXL1500VZEBR82M5AFIXED IND 820NH 196A 0.18MOHM TH |
2,911 | - |
|
Datasheet |
Nonstandard | Bulk | IHXL-1500VZ-5A | Active | - | - | 820 nH | ±20% | 196 A | - | Shielded | 0.18mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 500 kHz | - | Through Hole | - |
|
|
IHXL1500VZEB2R2M5AFIXED IND 2.2UH 168A 0.34MOHM TH |
3,933 | - |
|
Datasheet |
Nonstandard | Bulk | IHXL-1500VZ-5A | Active | - | - | 2.2 µH | ±20% | 168 A | - | Shielded | 0.34mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 500 kHz | - | Through Hole | - |
|
IHV50BZ50FIXED IND 50UH 50A 4.5 MOHM TH |
3,447 | - |
|
Datasheet |
Radial, Horizontal Cylinder | - | IHV | Active | - | Iron | 50 µH | ±10% | 50 A | - | Unshielded | 4.5mOhm Max | - | 3.1MHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - |
|
ILSB1206ER1R2KFIXED IND 1.2UH 100MA 500MOHM SM |
269 | - |
|
Datasheet |
1206 (3216 Metric) | Tape & Reel (TR),Cut Tape (CT) | ILSB-1206 | Active | Multilayer | Ferrite | 1.2 µH | ±10% | 100 mA | - | Shielded | 500mOhm Max | 45 @ 10MHz | 75MHz | - | -55°C ~ 125°C | 10 MHz | - | Surface Mount | 1206 |
|
|
IMC1008ER68NJFIXED IND 68NH 1A 150 MOHM SMD |
1,000 | - |
|
Datasheet |
1008 (2520 Metric) | Tape & Reel (TR),Cut Tape (CT) | IMC-1008 | Active | Drum Core, Wirewound | Ceramic | 68 nH | ±5% | 1 A | - | Unshielded | 150mOhm Max | 60 @ 350MHz | 1.3GHz | - | -40°C ~ 125°C | 100 MHz | - | Surface Mount | 1008 (2520 Metric) |
|
|
IMC1008ER100JFIXED IND 10UH 150MA 3.5 OHM SMD |
970 | - |
|
Datasheet |
1008 (2520 Metric) | Tape & Reel (TR),Cut Tape (CT) | IMC-1008 | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±5% | 150 mA | - | Unshielded | 3.5Ohm Max | 15 @ 2.52MHz | 33MHz | - | -40°C ~ 125°C | 2.52 MHz | - | Surface Mount | 1008 (2520 Metric) |
|
|
IMC1008ER6R8JFIXED IND 6.8UH 165MA 2.8OHM SMD |
950 | - |
|
Datasheet |
1008 (2520 Metric) | Tape & Reel (TR),Cut Tape (CT) | IMC-1008 | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±5% | 165 mA | - | Unshielded | 2.8Ohm Max | 20 @ 7.96MHz | 39MHz | - | -40°C ~ 125°C | 7.96 MHz | - | Surface Mount | 1008 (2520 Metric) |
|
IHHP1008ABER1R0M01FIXED IND 1UH 3.7A 42 MOHM SMD |
220 | - |
|
Datasheet |
1008 (2520 Metric) | Tape & Reel (TR),Cut Tape (CT) | IHHP-1008AB-01 | Active | - | - | 1 µH | ±20% | 3.7 A | 4A | Shielded | 42mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - |
|
|
IHHP1008AZER1R5M01FIXED IND 1.5UH 2.4A 96 MOHM SMD |
132 | - |
|
Datasheet |
1008 (2520 Metric) | Tape & Reel (TR),Cut Tape (CT) | IHHP-1008AZ-01 | Active | - | - | 1.5 µH | ±20% | 2.4 A | 2.6A | Shielded | 96mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - |
|
|
IHHP0603ZHERR47M01IHHP-0603ZH-01 .47 20% ER E3 |
490 | - |
|
Datasheet |
0603 (1608 Metric) | Tape & Reel (TR),Cut Tape (CT) | IHHP-0603ZH-01 | Active | - | Iron Powder | 470 nH | ±20% | 3 A | 3.1A | Shielded | 43mOhm Max | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 0603 |
|
|
IHHP0603ZHER1R0M01IHHP-0603ZH-01 1 20% ER E3 |
240 | - |
|
Datasheet |
0603 (1608 Metric) | Tape & Reel (TR),Cut Tape (CT) | IHHP-0603ZH-01 | Active | - | Iron Powder | 1 µH | ±20% | 1.8 A | 2.1A | Shielded | 110mOhm Max | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 0603 |
|
|
IHHP0806ZHERR47M01IHHP-0806ZH-01 .47 20% ER E3 |
500 | - |
|
Datasheet |
0806 (2016 Metric) | Tape & Reel (TR),Cut Tape (CT) | IHHP-0806ZH-01 | Active | - | Iron Powder | 470 nH | ±20% | 4.5 A | 4.7A | Shielded | 24mOhm Max | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 0806 |
|
|
IHHP0806ZHER2R2M01IHHP-0806ZH-01 2.2 20% ER E3 |
350 | - |
|
Datasheet |
0806 (2016 Metric) | Tape & Reel (TR),Cut Tape (CT) | IHHP-0806ZH-01 | Active | - | Iron Powder | 2.2 µH | ±20% | 2.3 A | 2.7A | Shielded | 90mOhm Max | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 0806 |
|
|
IHHP0806ZHER1R0M01IHHP-0806ZF-01 1 20% ER E3 |
400 | - |
|
Datasheet |
0806 (2016 Metric) | Tape & Reel (TR),Cut Tape (CT) | IHHP-0806ZH-01 | Active | - | Iron Powder | 1 µH | ±20% | 4 A | 3.6A | Shielded | 35mOhm Max | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 0806 |
