TVS - Diodes
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Type | UnidirectionalChannels | BidirectionalChannels | Voltage-ReverseStandoff(Typ) | Voltage-Breakdown(Min) | Voltage-Clamping(Max)@Ipp | Current-PeakPulse(10/1000µs) | Power-PeakPulse | PowerLineProtection | Applications | Capacitance@Frequency | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TPD1E10B06QDPYRQ1TVS DIODE 5.5VWM 14VC 2X1SON |
130,979 | - |
|
Datasheet |
0402 (1006 Metric) | Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | Zener | - | 1 | 5.5V (Max) | 6V | 14V (Typ) | 6A (8/20µs) | 90W | No | Automotive | 12pF @ 1MHz | -40°C ~ 125°C (TA) | Surface Mount |
|
|
TPD1E05U06QDPYRQ1TVS DIODE 5.5VWM 14VC 2X1SON |
41,237 | - |
|
Datasheet |
0402 (1006 Metric) | Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | Steering (Rail to Rail) | 1 | - | 5.5V (Max) | 6.4V | 14V (Typ) | 2.5A (8/20µs) | 30W | Yes | Automotive, HDMI, USB | 0.42pF @ 1MHz | -40°C ~ 125°C (TA) | Surface Mount |
|
|
TPD1E10B09QDPYRQ1TVS DIODE 9VWM 14VC 2X1SON |
23,876 | - |
|
Datasheet |
0402 (1006 Metric) | Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | Zener | - | 1 | 9V (Max) | 6V | 14V (Typ) | 6A (8/20µs) | 90W | No | Automotive | 12pF @ 1MHz | -40°C ~ 125°C (TA) | Surface Mount |
|
PESD12VS1UA,115TVS DIODE 12VWM 27VC SOD323 |
11,821 | - |
|
Datasheet |
SC-76, SOD-323 | Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | Zener | 1 | - | 12V (Max) | 13.3V | 27V | 22.5A (8/20µs) | 600W | No | Automotive | 160pF @ 1MHz | -55°C ~ 150°C (TA) | Surface Mount |
|
SP3042-01WTGTVS DIODE 5.3VWM 12.5VC 01005 |
48,006 | - |
|
Datasheet |
01005 (0402 Metric) | Tape & Reel (TR),Cut Tape (CT) | SP3042, SPA® | Active | Zener | - | 1 | 5.3V (Max) | 7.8V (Typ) | 12.5V (Typ) | 2A (8/20µs) | 20W | No | General Purpose | - | -40°C ~ 125°C (TA) | Surface Mount |
|
ESDR0502NMUTBGTVS DIODE 5.5VWM 6UDFN |
29,944 | - |
|
Datasheet |
6-UFDFN | Tape & Reel (TR),Cut Tape (CT) | - | Active | Steering (Rail to Rail) | 3 | - | 5.5V (Max) | 6V | - | - | 100W | Yes | Ethernet | 0.3pF @ 1MHz | -40°C ~ 125°C (TJ) | Surface Mount |
|
SMAJ30ATVS DIODE 30VWM 48.4VC SMA |
25,383 | - |
|
Datasheet |
DO-214AC, SMA | Tape & Reel (TR),Cut Tape (CT) | SMAJ | Active | Zener | 1 | - | 30V | 33.3V | 48.4V | 8.3A | 400W | No | General Purpose | - | -55°C ~ 150°C (TJ) | Surface Mount |
|
SMAJ30CA-TPTVS DIODE 30VWM 48.4VC DO214AC |
9,475 | - |
|
Datasheet |
DO-214AC, SMA | Tape & Reel (TR),Cut Tape (CT) | - | Active | Zener | - | 1 | 30V | 33.3V | 48.4V | 8.3A | 400W | No | General Purpose | - | -55°C ~ 175°C (TA) | Surface Mount |
|
|
PESD24VS1UA,115TVS DIODE 24VWM 70VC SOD323 |
5,259 | - |
|
Datasheet |
SC-76, SOD-323 | Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | Zener | 1 | - | 24V (Max) | 26.5V | 70V | 3A (8/20µs) | 160W | No | Automotive | 23pF @ 1MHz | -65°C ~ 150°C (TA) | Surface Mount |
|
SMAJ45A-13-FTVS DIODE 45VWM 72.7VC SMA |
6,420 | - |
|
Datasheet |
DO-214AC, SMA | Tape & Reel (TR),Cut Tape (CT) | - | Active | Zener | 1 | - | 45V | 50V | 72.7V | 5.5A | 400W | No | General Purpose | - | -55°C ~ 150°C (TJ) | Surface Mount |
|
ESD113B102ELSE6327XTSA1TVS DIODE 3.6VWM 8VC TSSLP-2-4 |
66,253 | - |
|
Datasheet |
0201 (0603 Metric) | Tape & Reel (TR),Cut Tape (CT) | - | Not For New Designs | Zener | - | 1 | 3.6V (Max) | - | 8V | 3A (8/20µs) | - | No | HDMI | 0.22pF @ 1MHz | -40°C ~ 125°C (TA) | Surface Mount |
.jpg)
|
CPDUC5V0USP-HFTVS DIODE 5VWM 20V 0603C/SOD523F |
82,523 | - |
|
Datasheet |
0603 (1608 Metric) | Tape & Reel (TR),Cut Tape (CT) | - | Active | Zener | 1 | - | 5V (Max) | 5.4V | 20V | 3A (8/20µs) | 60W | No | General Purpose | 0.6pF @ 1MHz | -55°C ~ 150°C (TJ) | Surface Mount |
.jpg)
|
PESD5V0L1UB,115TVS DIODE 5VWM 12VC SOD523 |
13,991 | - |
|
Datasheet |
SC-79, SOD-523 | Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | Zener | 1 | - | 5V (Max) | 6.4V | 12V | 3.5A (8/20µs) | 42W | No | Automotive | 25pF @ 1MHz | -55°C ~ 150°C (TA) | Surface Mount |
.jpg)
|

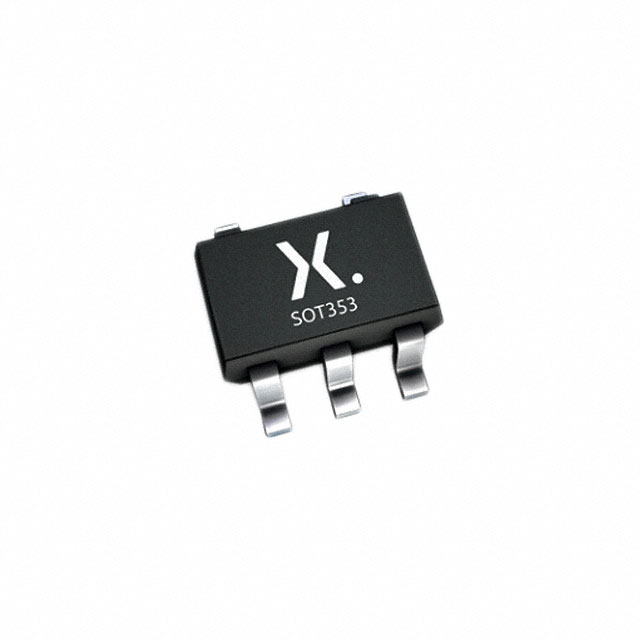

BZA856AVL,115TVS DIODE 5.6VWM 5TSSOP |
7,195 | - |
|
Datasheet |
5-TSSOP, SC-70-5, SOT-353 | Tape & Reel (TR),Cut Tape (CT) | - | Active | Zener | 4 | - | 5.6V | - | - | - | 6W | No | General Purpose | 17pF @ 1MHz | 150°C (TJ) | Surface Mount |
|
SP3021-01ETGTVS DIODE 5VWM 14.7VC SOD882 |
83,676 | - |
|
Datasheet |
SOD-882 | Tape & Reel (TR),Cut Tape (CT) | SP3021, SPA® | Active | Zener | - | 1 | 5V (Max) | 7V | 14.7V (Typ) | 2A (8/20µs) | - | No | HDMI | - | -40°C ~ 125°C (TJ) | Surface Mount |
|
ESD8111PFCT5GTVS DIODE 3.3VWM 8VC 2WLCSP |
71,864 | - |
|
Datasheet |
2-XFBGA, WLCSP | Tape & Reel (TR),Cut Tape (CT) | - | Active | Zener | - | 1 | 3.3V (Max) | 5.5V | 8V | 7.1A (8/20µs) | - | No | USB | 0.2pF @ 1MHz | -55°C ~ 150°C (TJ) | Surface Mount |
|
PESD3V3S2UAT,215TVS DIODE 3.3VWM 20VC TO236AB |
5,630 | - |
|
Datasheet |
TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR),Cut Tape (CT) | - | Active | Zener | 2 | - | 3.3V (Max) | 5.2V | 20V | 18A (8/20µs) | 330W | No | General Purpose | 207pF @ 1MHz | -65°C ~ 150°C (TA) | Surface Mount |
|
VCAN26A2-03G-E3-08TVS DIODE 26.5VWM 50VC SOT323 |
34,428 | - |
|
Datasheet |
SC-70, SOT-323 | Tape & Reel (TR),Cut Tape (CT) | - | Active | Zener | - | 2 | 26.5V (Max) | 28V | 50V | 3A (8/20µs) | 150W | No | CAN | 10pF @ 1MHz | -55°C ~ 150°C (TJ) | Surface Mount |
|
SZESD7462N2T5GTVS DIODE 16VWM 47VC 2X2DFN |
16,885 | - |
|
Datasheet |
2-XDFN | Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | Zener | - | 1 | 16V (Max) | 16.5V | 47V (Typ) | 16A | - | No | Automotive | 0.3pF @ 1MHz | -55°C ~ 150°C (TJ) | Surface Mount |
|
PESD2CANFD27L-UXTVS DIODE 27VWM SC70 |
12,345 | - |
|
Datasheet |
SC-70, SOT-323 | Tape & Reel (TR),Cut Tape (CT) | - | Active | Zener | - | 2 | 27V | - | - | 4A (8/20µs) | - | No | Automotive, CAN | - | - | Surface Mount |
