Wireless Charging Coils
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Function | Type | Inductance | Tolerance | DCResistance(DCR) | Q@Freq | CurrentRating(Amps) | Current-Saturation(Isat) | Frequency-SelfResonant | OperatingTemperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IWAS3222CZEB190JF1IWAS-3222CZ-F1 19 5% EB E2 |
2,299 | - |
|
Datasheet |
Tray | - | Active | Receiver | 1 Coil, 1 Layer | 19.6µH | ±5% | 357mOhm | 29 @ 200kHz | - | - | - | -40°C ~ 105°C |
|
|
IWTX9955DEEB110KF3WIRELESS CHARGING TRANSMIT COIL |
2,786 | - |
|
Datasheet |
Tray | - | Active | Transmitter | 3 Coil, 1 Layer | 11.3µH, 11.3µH, 11.3µH | ±10% | 80mOhm Max | 100 @ 100kHz, 100 @ 100kHz, 100 @ 100kHz | 6.5A | - | - | -40°C ~ 125°C |
|
|
IWTXA148DGEB9R8KF3WIRELESS CHARGING TRANSMIT COIL |
2,127 | - |
|
Datasheet |
Tray | - | Active | Transmitter | 3 Coil, 1 Layer | 9.8µH, 10.2µH, 9.8µH | ±10% | 80mOhm Max | 100 @ 100kHz, 100 @ 100kHz, 100 @ 100kHz | 7A | - | - | -40°C ~ 125°C |
|
|
IWTXA653FZEB120KF3WIRELESS CHARGING TRANSMIT COIL |
3,403 | - |
|
Datasheet |
Tray | - | Active | Transmitter | 3 Coil, 1 Layer | 12.5µH, 11.5µH, 12.5µH | ±10% | 80mOhm Max | 110 @ 100kHz, 100 @ 100kHz, 110 @ 100kHz | 6.5A | - | - | -40°C ~ 85°C |
|

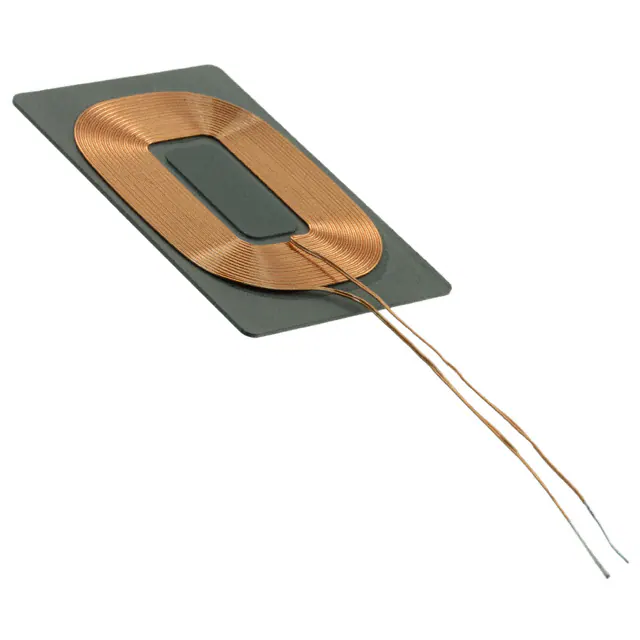

IWAS4832FFEB9R7J50RX 1 COIL 1 LAYER BIFILAR 9.7UH |
3,393 | - |
|
Bulk | - | Obsolete | Receiver | 1 Coil, 1 Layer, Bifilar | 9.7µH | ±5% | 200mOhm | 30 @ 200kHz | - | - | - | - | |
|

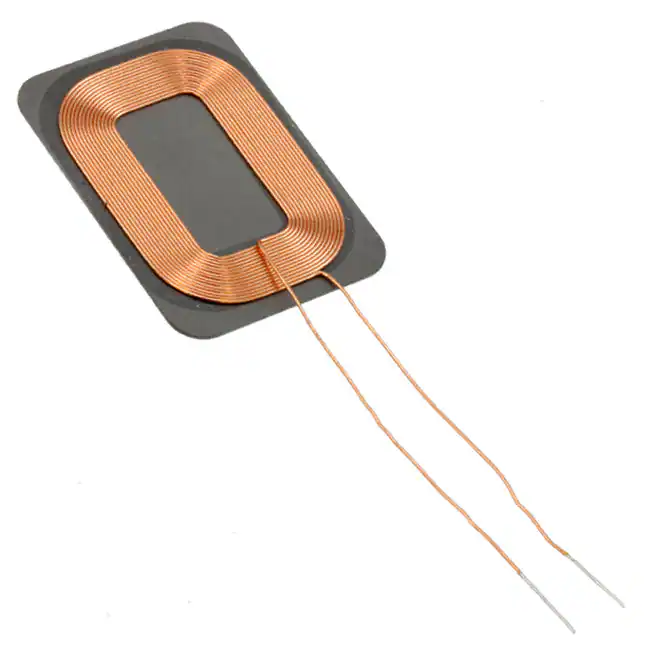

IWAS3827ECEB100J50RX 1 COIL 1 LAYER 10.7UH |
3,525 | - |
|
Datasheet |
Bulk | - | Obsolete | Receiver | 1 Coil, 1 Layer | 10.7µH | ±5% | 183mOhm | 30 @ 200kHz | - | - | - | - |
|
|
IWAS4832ECEB220J50RX 1 COIL 1 LAYER 22UH |
2,735 | - |
|
Datasheet |
Bulk | - | Obsolete | Receiver | 1 Coil, 1 Layer | 22µH | ±5% | 425mOhm Max | 30 @ 200kHz | - | - | - | - |
|

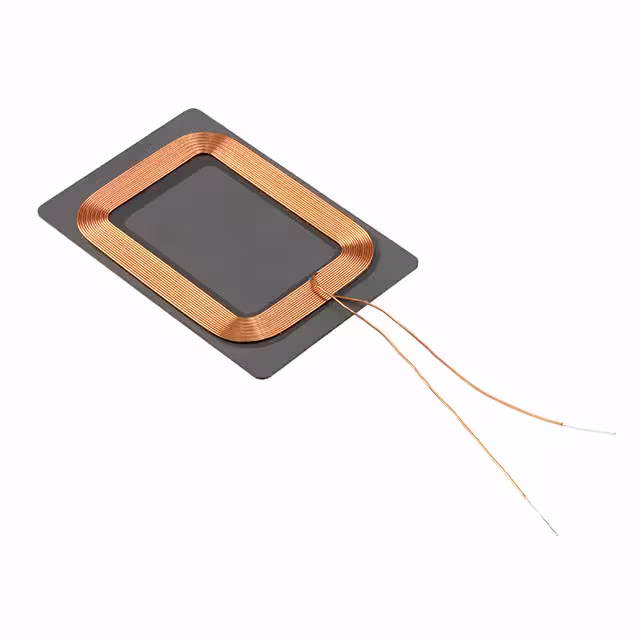

IWAS4832ECEB160J50RX 1 COIL 1 LAYER 16.2UH |
2,672 | - |
|
Datasheet |
Bulk | - | Obsolete | Receiver | 1 Coil, 1 Layer | 16.2µH | ±5% | 366mOhm Max | 30 @ 200kHz | - | - | - | - |
|
|
IWAS4832FEEB150J50RX 1 COIL 1 LAYER 16.2UH |
2,033 | - |
|
Datasheet |
Bag | - | Obsolete | Receiver | 1 Coil, 1 Layer | 16.2µH | ±5% | 366mOhm | 30 @ 200kHz | - | - | - | - |
|
|
IWAS2312ECEB390K50WIRELESS CHARGE RECEIVING COIL |
3,617 | - |
|
Bulk | - | Obsolete | - | - | - | - | - | - | - | - | - | - | |
|
|
IWAS240RGZEB110J50WIRELESS CHARGE RECEIVING COIL |
2,946 | - |
|
Bulk | - | Obsolete | - | - | - | - | - | - | - | - | - | - | |
|
|
IWAS2515FBEB390J50WIRELESS CHARGE RECEIVING COIL |
3,880 | - |
|
Bulk | - | Obsolete | - | - | - | - | - | - | - | - | - | - | |
|
|
IWAS2620FEEB120J50WIRELESS CHARGE RECEIVING COIL |
2,562 | - |
|
Bulk | - | Obsolete | - | - | - | - | - | - | - | - | - | - | |
|
|
IWAS3025FAEB110J50WIRELESS CHARGE RECEIVING COIL |
3,171 | - |
|
Bulk | - | Obsolete | - | - | - | - | - | - | - | - | - | - | |
|
|
IWAS3222BZEB190J50WIRELESS CHARGE RECEIVING COIL |
2,169 | - |
|
Bulk | - | Obsolete | - | - | - | - | - | - | - | - | - | - | |
|
|
IWAS3420FEEB120J50WIRELESS CHARGE RECEIVING COIL |
3,333 | - |
|
Bulk | - | Obsolete | - | - | - | - | - | - | - | - | - | - | |
|
|
IWAS3726CZEB120JK0WIRELESS CHARGE RECEIVING COIL |
2,159 | - |
|
Bulk | - | Obsolete | - | - | - | - | - | - | - | - | - | - | |
|
|
IWAS3827ECEB100J53WIRELESS CHARGE RECEIVING COIL |
2,793 | - |
|
Bulk | - | Obsolete | - | - | - | - | - | - | - | - | - | - | |
|
|
IWAS3827ECEB100J54WIRELESS CHARGE RECEIVING COIL |
3,490 | - |
|
Bulk | - | Obsolete | - | - | - | - | - | - | - | - | - | - | |
|
|
IWAS3827ECEB110J52WIRELESS CHARGE RECEIVING COIL |
3,072 | - |
|
Bulk | - | Obsolete | - | - | - | - | - | - | - | - | - | - |
